MMC220 Extended Range Pinless Moisture Meter

USD $395.00

This product is no longer available. The MMC220 Moisture Meter has been updated to the new Orion Line of pinless moisture meters. Click HERE to see how the MMC line compares to the new Orion Line.

Out of Stock

SKU: 890-00220-001

About the MMC220 Wood Moisture Meter

SKU: 890-00220-001

Our most popular selling model for wood flooring and woodworking applications. The MMC220 Moisture Meter is ideal for measuring wood moisture in all wood species; from rare tropical species to the more common softwoods and hardwoods. User-programmable species settings.

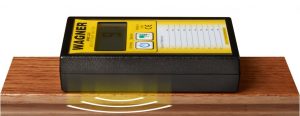

Pinless Moisture Measurement

For woodworkers, guitar makers, flooring installers, cabinet or furniture manufacturers, lumber suppliers, and more! The MMC220 offers a complete and portable moisture meter easy to use and easy to adjust. With its extended range Specific Gravity Species Settings the MMC220 can measure most softwoods and hardwoods as well as tropical species. The MMC220 excels at quickly and accurately scanning many board feet of lumber or many pieces of wood flooring in just seconds with no damage to the wood.

Wagner Meters’ IntelliSense™ Technology

Ensures that the MMC220 is measuring deeply IN the wood for a true moisture picture without damage to the wood surface and without interference from surface moisture.

No Calibration Needed for Temperature

Like all of the pinless meters at Wagner Meters, there is no need to adjust moisture content readings for temperature. The Intellisense™ Technology is virtually unaffected by changes in wood temperature. So there’s no need for adjustment!

Press and Hold feature

Beneath a sink, under a cabinet overhang or in a tight corner, with the Press and Hold feature you can take the Moisture Content reading and the display holds the reading once the meter is removed, letting you quickly and easily document Moisture Content readings in all parts of your project. Lightweight, easy to operate, and with an extended Species Settings capability, the quick and accurate MMC220 is the best all-purpose moisture meter on the job.

Wood Species Settings

The MMC220 has simple species adjustments at the push of a button. The MMC220 can accurately measure the moisture content for all wood types with specific gravity between .2-1.0 including hardwoods, softwoods, tropical species, and even OSB or plywood.

Meter Specifications

Size & Weight: Length – 4 9/16″; Width – 2 3/4″; Height – 1 1/16″; Weight – .37 lbs
Power: 9-volt battery Auto Power Shut Down – 60 seconds
Control: Two button control for on/off and species settings, Press & Hold feature
Depth of Measurement: 3/4″
Moisture Content: 5% – 32% Digital Display in .1% increments (Note: If the SG selected is >.8, the maximum MC reading will be <30%)
Scanning Area: 1 1/2″ x 2 1/2″
Specific Gravity: Selectable wood species setting .20-1.0
Calibration: Verifiable with Calibration Block (sold separately)

Other Features:

  • 7-Year Warranty
  • Battery Included
  • Shock Resistant Carrying Case with Belt Clip Included
  • Operating Temperature 30-110° F

Have questions? Give us a call: (541) 291-5124

Note for L606 users: The L606 is no longer available. We recommend the new Orion moisture meter line


MMC220 Extended Range Wood Moisture Meter PDF Manual

MMC220 Extended Range Wood Moisture Meter PDF Species Adjustment Tables

Specific Gravity Determination Help
